[產品說明] : 輕型無紡布又稱薄型無紡布、PET無紡布。由100%聚酯纖維組成，經泡沫浸漬烘干壓制成型，纖維經過充分梳理，縱向強度高。

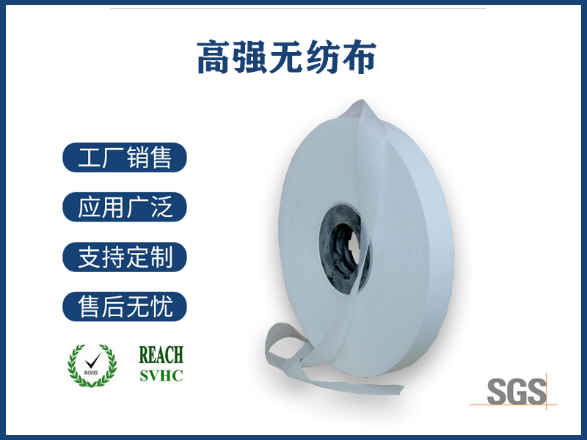

Product Description: Light non-woven tape also called thin non-woven tape, PET non-woven tape, made up of 100% polyester. After a foam impregnation, dry pressing and forming, fiber was combed fully, longitudinal strength.
[應用方式]: 適合用于橡套電纜、電力電纜、特種電纜、通信電纜、同軸電纜、音頻舞臺電纜和光纜。
Application: Used in rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio cables and optic cable.
一、主要技術指標：
Main specification:
產品規格 Specification | 伸長 率Elongation （%） | 抗張強度 Tensile strength （N/30mm） | 基重 Basis weight （g/m2） | 熱收縮率 Heat shrinkage （%） | 吸水速度 Water absorption speed （mm/min） |
| 30±5μm | 10↑ | 24↑ | 17±3 | 2.5↓ | 0.1↓ |
| 50±5μm | 10↑ | 50↑ | 30±4 | 2.5↓ | 0.1↓ |
| 60±5μm | 10↑ | 80↑ | 30±4 | 2.5↓ | 0.1↓ |
| 80±5μm | 10↑ | 100↑ | 40±5 | 2.5↓ | 0.1↓ |
| 100±5μm | 10↑ | 120↑ | 60±5 | 2.5↓ | 0.1↓ |
| 120±5μm | 10↑ | 150↑ | 70±5 | 2.5↓ | 0.1↓ |
| 150±5μm | 10↑ | 160↑ | 75±5 | 2.5↓ | 0.1↓ |
| 200±5μm | 10↑ | 200↑ | 75±5 | 2.5↓ | 0.1↓ |
除以上規格外，其它可按客戶特殊要求單獨設計。 In addition to the above specifications, other special requirements can design according to customers | |||||
二、顏色：白色。
Color: White
三、電氣特性：輕型無紡布厚度較薄，比重較輕，因此成本較低。且柔軟性好，適合各種電線電纜繞包。并且瞬間耐溫可承受180度不熔化不變形，可耐硫化。
Electrical characteristics: Thickness of light weight non-woven tape is thin, proportion is light, so the cost is little lower. Good flexibility and it is suitable for wrapping in all kinds of wires and cables. And can withstand 180 degree, not melt and deformation, can be resistant to sulfide.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
