[產品說明]: 麥拉帶Mylar/PET聚酯帶利用雙向拉伸聚酯材料的高引張強度與電氣特性，提供電纜內部結構的包覆與絕緣。

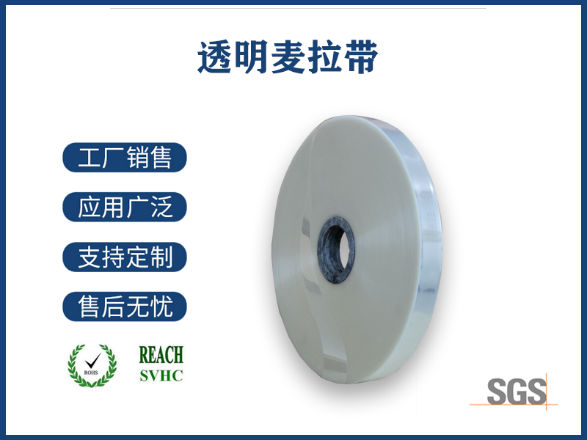

Product Description: Mylar tape/Polyester tape use high tensile strength and electrical characteristics with bi-axially polyester material, providing cable coating and insulation of internal structures.
[應用方式]: 適用于訊號傳輸線，同軸電纜，控制電纜等多股結構的復合線材, 及其它線材內部的絕緣用途。
Application: Suitable for composite wire materials with multiple structures, like signal transmission lines, coaxial cable, control cable, and other insulation usage with interior wire materials.
一、主要技術指標：
Main specification:
| 產品規格Specification | 伸長率Elongation（%） | 抗張強度Tensile strength（kgf/m2） | 基重Basis weight（g/m2） |
| 12μm | 35↑ | 0.18↑ | 18.25 |
| 15μm | 35↑ | 0.22↑ | 20.25 |
| 25μm | 35↑ | 0.37↑ | 33.75 |
| 38μm | 35↑ | 0.58↑ | 51.30 |
| 50μm | 35↑ | 0.75↑ | 79.65 |
| 75μm | 35↑ | 1.12↑ | 86.40 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：透明
Color: Transparent
三、電氣特性：耐溫180℃，具有較高的機械強度，卓越的絕緣屏蔽性能，耐高溫、耐低溫，是理想的繞包材料，主要作為絕緣及隔離，同時可以增加特性阻抗。
Electrical characteristics: Temperature resistance of 180 ° c, with high mechanical strength, excellent insulation shielding property, high temperature resistance, low temperature resistance, is an ideal wrapping material, mainly used as insulation and isolation, as well as increased impedance.
四、分切及包裝：分切最小寬度為2mm，采用軸裝形式；常規分切寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
