[產品說明]: 采用軟質鋁箔與聚酯薄膜為原材，以凹版涂布進行復合，待鋁箔麥拉熟成再分切卷收，其結構是一層鋁箔和一層聚酯薄膜復合而成（AL/PET）。

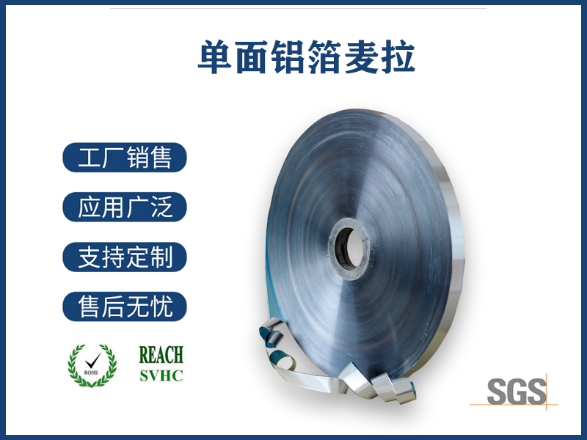

Product Description: The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done, the structure is a layer of aluminum foil and a layer of polyester film. (AL/PET)
[應用方式]: 應用于無電磁場或靜電干擾的電纜，如通信電纜、數據電纜、同軸電纜、網絡電纜以及信號電纜的屏蔽，可搭配涂膠，鋁箔麥拉模切后可用于組裝屏蔽與接地。
Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.
鋁箔麥拉包含:單面鋁箔,雙面鋁箔,展翅鋁箔,熱熔鋁箔,鋁箔膠帶,鋁塑復合帶。
Aluminum foil polyester include: Aluminum polyester tape (single side), Aluminum polyester tape (double side), Free edge aluminum polyester tape, Heat sealed aluminum polyester tape, Aluminum polyester foil tape, Composite aluminum-plastic tape.
主要技術指標：
Main specifications:
| 產品規格Specification | 組成Composition | 伸長率Elongation（%） | 抗張強度Tensile strength（Mpa） | 基重Basis weight（g/m2） | 剝離強度Peel strength(N/cm) | |
| 鋁厚AL | 麥拉厚PET | |||||
| 22±10%μm | 7μm | 12μm | 35↑ | 60↑ | 39±10% | 6.3↑ |
| 25±10%μm | 7μm | 15μm | 35↑ | 60↑ | 43±10% | 6.3↑ |
| 30±10%μm | 7μm | 20μm | 35↑ | 60↑ | 51±10% | 6.3↑ |
| 25±10%μm | 9μm | 12μm | 35↑ | 60↑ | 45±10% | 6.3↑ |
| 27±10%μm | 9μm | 15μm | 35↑ | 60↑ | 49±10% | 6.3↑ |
| 35±10%μm | 9μm | 23μm | 35↑ | 60↑ | 61±10% | 6.3↑ |
| 27±10%μm | 12μm | 12μm | 20↑ | 60↑ | 53±10% | 6.3↑ |
| 30±10%μm | 15μm | 12μm | 20↑ | 60↑ | 62±10% | 6.3↑ |
| 43±10%μm | 20μm | 20μm | 20↑ | 60↑ | 86±10% | 6.3↑ |
| 53±10%μm | 25μm | 25μm | 20↑ | 60↑ | 107±10% | 6.3↑ |
| 70±10%μm | 40μm | 25μm | 15↑ | 60↑ | 147±10% | 6.3↑ |
| 65±10%μm | 50μm | 12μm | 10↑ | 60↑ | 156±10% | 6.3↑ |
| 73±10%μm | 50μm | 20μm | 15↑ | 60↑ | 167±10% | 6.3↑ |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||||
二、顏色：常見顏色為藍色和銀色,還可根據需要做成紅色、綠色、金色等，還可以根據客戶需要印字和印斜紋等。
Color: Common color is blue and silver, can also be made red, green, gold, etc., according to customer’s needs, and can also printing and printed twill according to customer needs.
三、應用：主要應用于電腦線、通信電纜、高頻信號線、射頻線、同軸電纜等。
Application: Mainly used in computer line, communication cable, high-frequency signal lines, RF cable, coaxial cable, and so on.
四、電氣特性：主要作為抗電磁干擾用，通常情況是在1-100MHZ，屏蔽衰減70dB左右時，用鋁箔麥拉就可以達到。
Electrical characteristics: mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.
五、分切及包裝：可以片裝與復繞軸裝，分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
